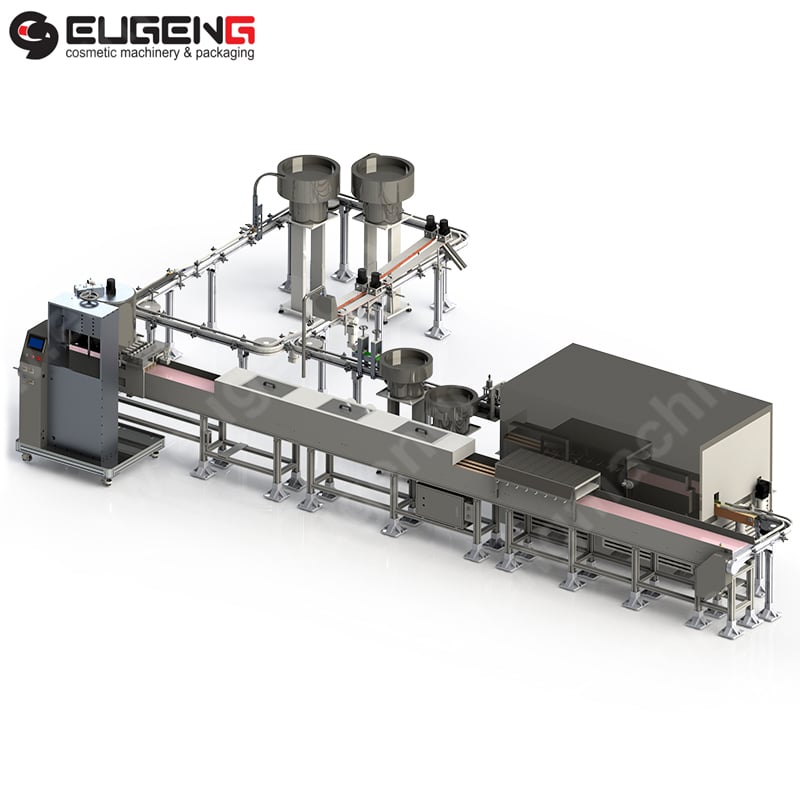

6 nozzles lip balm filling line

Model EGLF-06A is a full automatic lip balm hot filling cooling production line designed for the production of lip balm and chapsticks. Working process: Auto loading empty tube into puck holder, auto 6 nozzles filling, precooling, reheating, cooling being solid, auto loading cap, auto pressing, auto separate tube from puck holder and discharge into labeling hopper, auto labeling.

Product Description

1.Target Products

Slim 6 6 6

2.Descriptions

  • Automatic feeding lip balm tube into pucks by vibrator
  • 1 set of 3 layers of jacketed vessels 50L capacity with stirrer
  • 6 filling nozzles, all parts contacted with bulk be heated
  • Servo motor controlled dosing pump
  • Dosing volume and pump speed controlled by digital input, accuracy +-0.03g
  • Filling unit designed for easy strip-down cleaning and re-assembly to facilitate quick change over
  • Lip balm precooling by cooling fan
  • Re-heating unit for make the lip balm surface flat and more shinning
  • Automatic into cooling system, and cooling tunnel with 11 conveyors in and out
  • Frost moving system to prevent freezing and the frost moving cycle time can be adjusted
  • Cooling temperature can be adjusted down to -20℃
  • Danfoss refrigeration system and with water cooling cycle system for compressor
  • Automatic feeding caps by vibrator
  • Slope conveyors belt pressing caps
  • Automatic separate tube from puck holder and discharge into labeling hopper, automatic labeling
  • Components brand: PLC& Touch screen is Mitsubishi, switch is Scheneider, Relay is Omron, Servo motor is Panasonic, Pneumatic components is SMC, Yinghuate compressor, KUBAO control system
  • Options
  • Extra one set of piston of valve
  • 400L melting tank with pump
  • Automatic feeding pump
  • Automatic labeling machine

3.Specifications and Parameters

Model No. EGLF-06A
Output capacity 55-60pcs/ min
Filling volume 0-120ml
No. of nozzle 6
No. of operator 1
Tank volume 50L/ set
Powder consumption 12kw
Air put 4-6kgf
Dimension(M) 8.5×1.8×1.9
Weight 2500kgs

4.Details

6 nozzles lip balm filling line.png 6 nozzles lip balm filling line (2).png 6 nozzles lip balm filling line (3).png 6 nozzles lip balm filling line (4).png
Auto loading tubes into pucks 6 nozzle feeding at same time Precooling part Reheating part
6 nozzles lip balm filling line (5).png 6 nozzles lip balm filling line (6).png 6 nozzles lip balm filling line (7).png 6 nozzles lip balm filling line (8).png

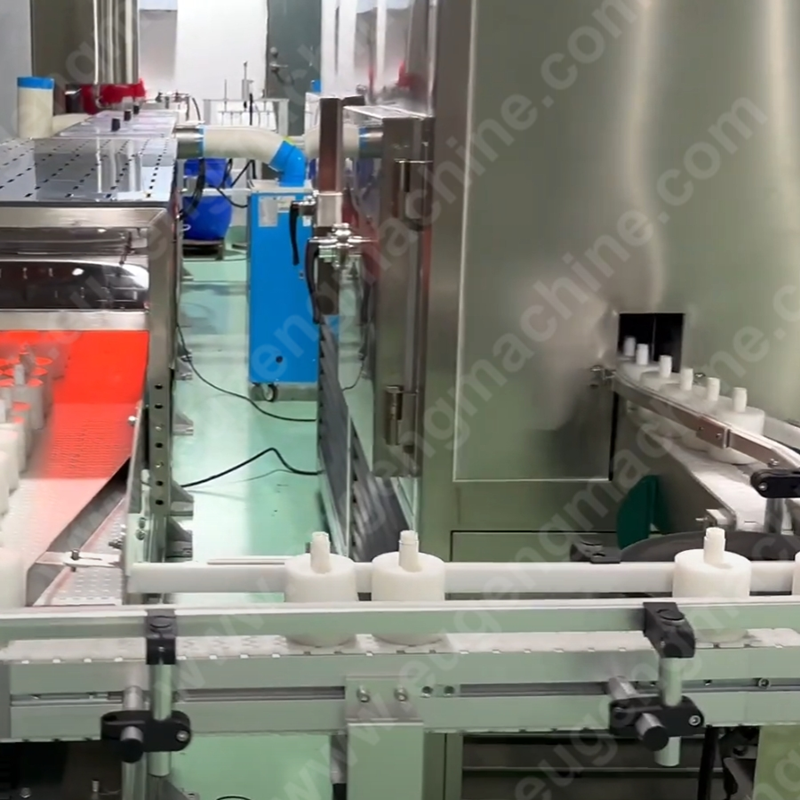

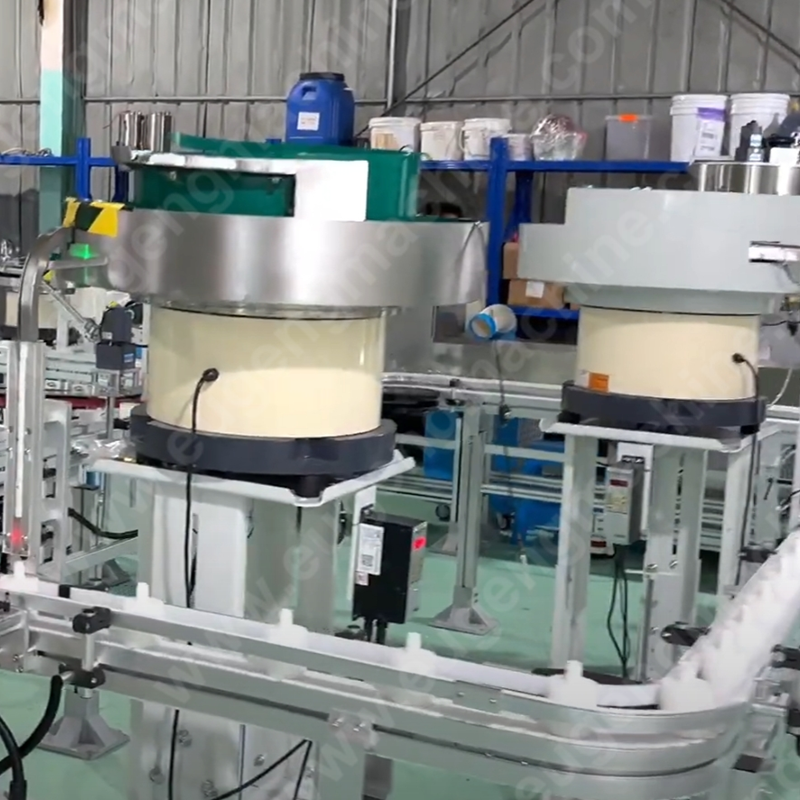

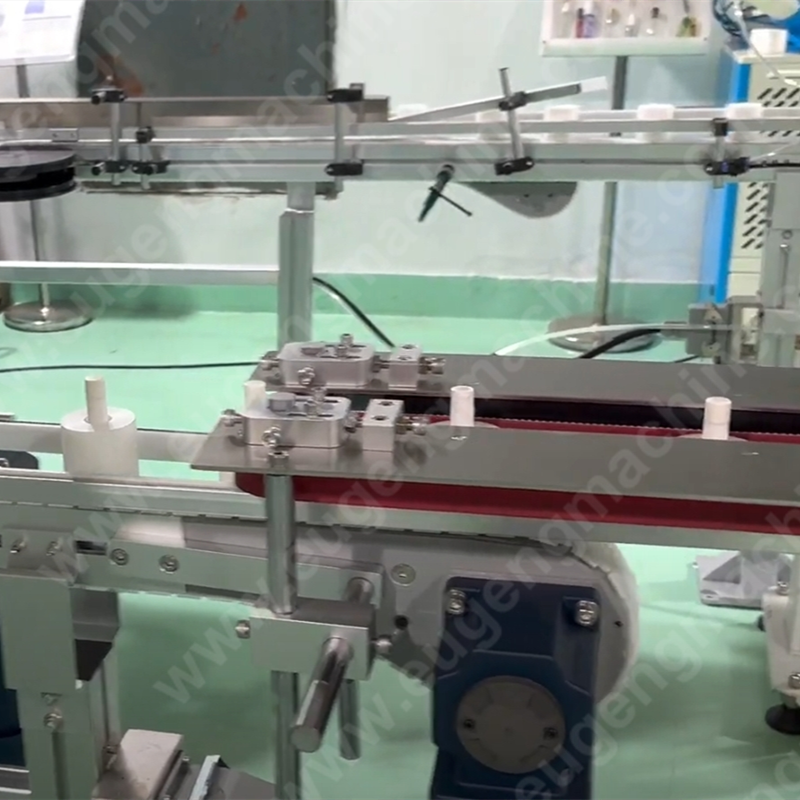

Cooling tunnel Cap feeder with vibrator Auto loading cap Auto pressing cap
